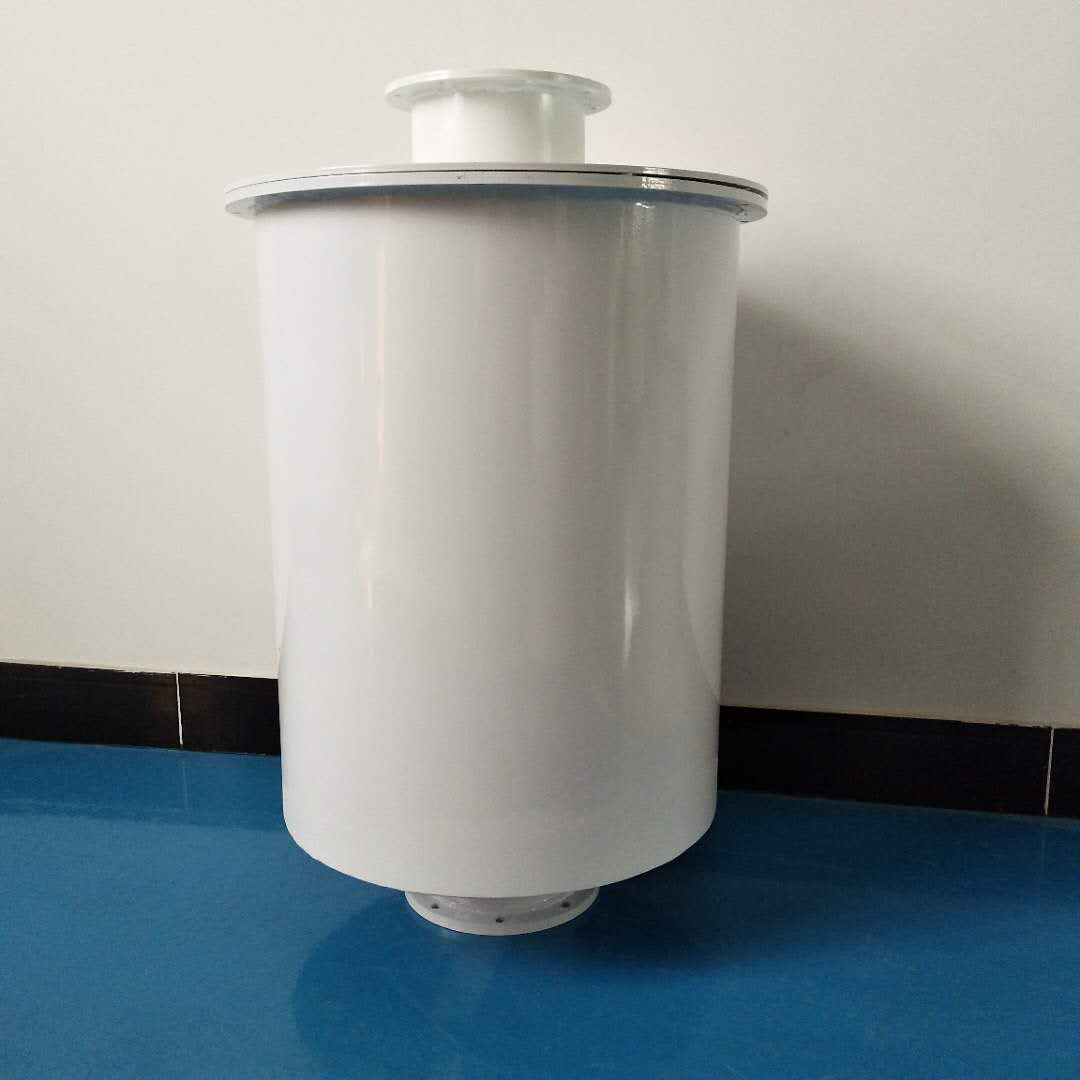

300L/S Slide Valve Vacuum Pump Oil Mist Filter

Product Name: Double Stage Oil Mist Filter

LVGE Ref: LOA-623Z

Applicable Model: H600 slide valve vacuum pump

Element Dimensions: Ø420*255*550mm(HEPA, LOA-623),

Ø250*200*500mm(LOA-623N)

Interface Size: DN150 (Customized service is available)

Filtration Area: 4.0m²

Flow Rate: 600L/s; 2200m³/h

Filtration Efficiency: ＞99%

Initial Pressure Drop: ＜3kpa

Stable Pressure Drop: ＜15kpa

Application Temperature: ＜110℃

Function: Separate oil and gas from the oil mist discharged by the vacuum pump to purify the exhaust gas. In addition, the vacuum pump oil collected from it can also be reused.

Send email to us

Product Detail

Product Tags

Installation and Operation Video

Tips

1. There is no relief valve. Our filter element will automatically break to relieve pressure when the pressure drop reaches 70-90kPa. Thus, when the filter element is broken or visible oil fumes appear at the exhaust port, the filter element should be replaced .

2. When the pressure exceed 40kPa (the red area in pressure gauge), the filter element should be replaced.

3. It’s suggested to replace the filter element when it has been in use for more than 2000 hours.

4. We suggest that you should replace the vacuum pump oil when replacing the filter element. And if you find the oil has been polluted (has become black, gelatinous or deteriorated, or there is lots of particulate matter in the oil), you should clean the vacuum pump before replacing a new filter element. It will make your vacuum pump and filter element last longer.

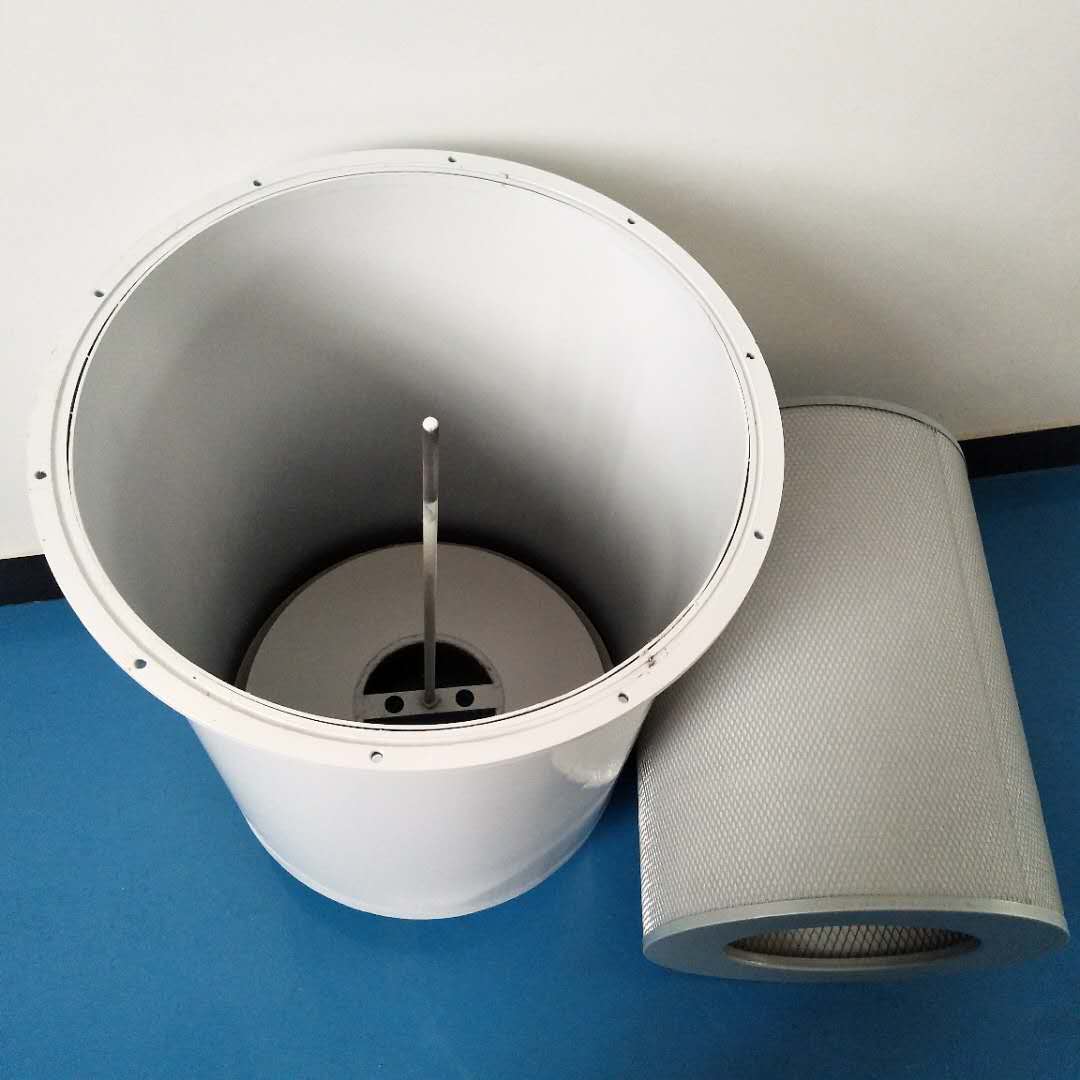

5. We use two-stage filtration, so there are two filter elements inside one filter. The low efficiency filter element can extend the service life of high-efficiency filter element. Generally, only the HEPA one need to be replaced.

Material Description

1. The filter housing is made of carbon steel with electrostatic spraying treatment and seamless welding process, and the inside and outside are . Therefore, it has characters of beautiful appearance and strong rust resistance. Moreover, it has passed leak test before leaving the factory.

2. The key filter media is glass fiber fabric imported form Germany with high filtration efficiency, low pressure drop and excellent corrosion resistance. And the other filter media around it is made of PET with excellent oleophobicity, flame resistance and corrosion resistance.
