71421180 Leybold Vacuum Pump Replacement Filter

LVGE Ref: LOA-926

OEM Ref: 71421180

Applicable Model: Leybold SV40B

Function: When the vacuum pump is working, it will exhaust fume filled with oil particles. The filter will separate and collect the oil from the exhaust, so as to discharge clean gas and recycle the oil.


  • Dimensions: 72*190mm
  • Nominal Flow: 40 m³/h
  • Filtration Efficiency: More than 99%
  • Application Temperature: Below 100℃
  • Open Pressure of Safety Valve: 90±10 KPa
  • Product Detail

    Product Tags

    Installation and Operation Video

    FAQ

    • Why are your filter elements expensive?
    1. Because our cost is high. The glass fiber filter paper we used is imported from Germany. You will be surprised for its excellent filtering effect and durability. Hence, the price is reasonable.
    • Is the lids of your filter made of plastic or iron?
    1. The lids of most of filters are made of plastic--PA66 and GF30. But They are hard to penetrate under normal circumstances. Their other performance is also excellent , such as resistances to effect of heat, abrasion and corrosion. We can also provide an iron lids if you want.
    • Are the non-woven fabric and the sealing ring resistant to corrosion?
    1. Yes. And the former is made of PET with the characteristic of lipophobicity. The later is made of FKM with resistances of heat and abrasion .
    • Why ask so many questions?
    1. Please rest assured, we are not to pry your trade secrets, but to find suitable products efficiently for you. We suggest you take a picture of the rating plate of the pump or provide us with the contact information of your technical personnel. It can save you a lot of effort.
    • Is it difficult to install the filter?
    1. We have finished the installation before delivery, you only need to connect the filter and pump. There are teaching videos of installation on our official website. Please feel free to contact us if you have any problems.

    Product Detail Picture

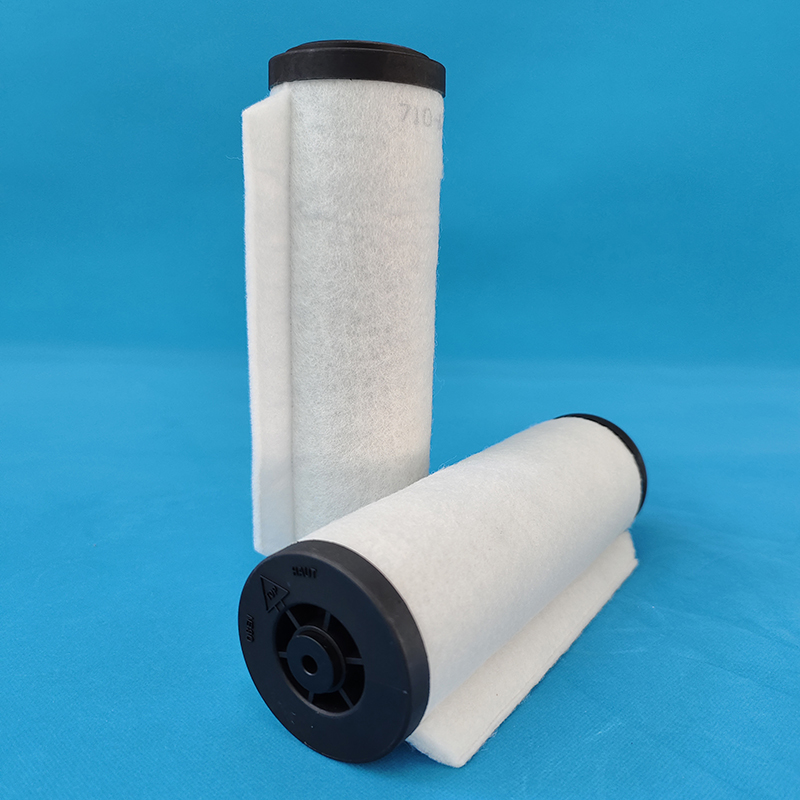

    71421180 Leybold Vacuum Pump Replacement Filter1

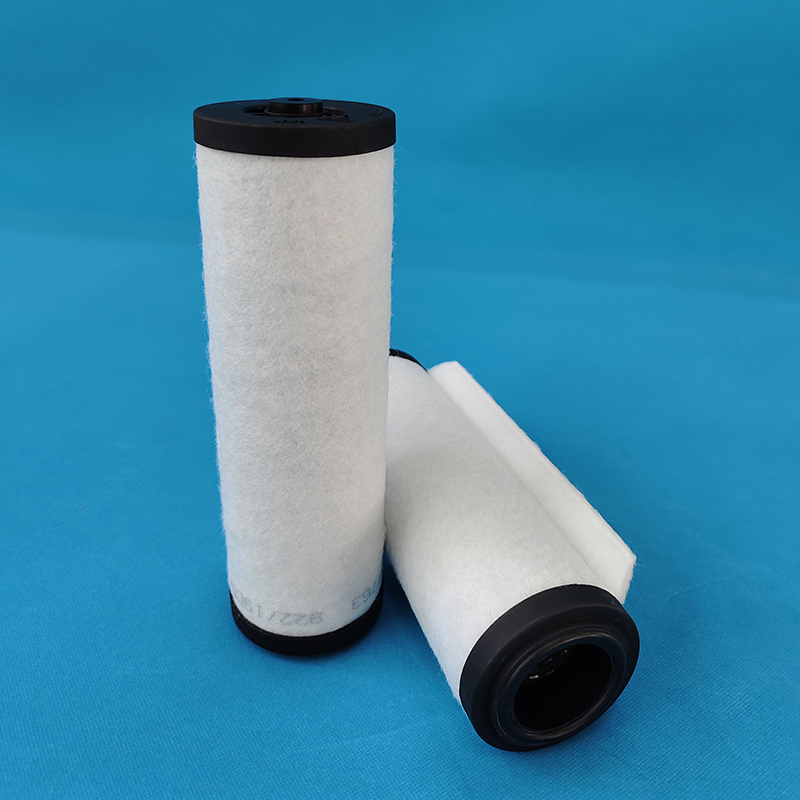

    71421180 Leybold Vacuum Pump Replacement Filter2

    27 tests contribute to a 99.97% pass rate!
    Not the best, only better!

    Leak Detection of Filter Assembly

    Leak Detection of Filter Assembly

    Exhaust Emission Test of Oil Mist Separator

    Exhaust Emission Test of Oil Mist Separator

    Incoming Inspection of Sealing Ring

    Incoming Inspection of Sealing Ring

    Heat Resistance Test of Filter Material

    Heat Resistance Test of Filter Material

    Oil Content Test of Exhaust Filter

    Oil Content Test of Exhaust Filter

    Filter Paper Area Inspection

    Filter Paper Area Inspection

    Ventilation Inspection of Oil Mist Separator

    Ventilation Inspection of Oil Mist Separator

    Leak Detection of Inlet Filter

    Leak Detection of Inlet Filter

    Salt Spray Test of Hardware

    Leak Detection of Inlet Filter
