Gas-Liquid Separator Cooling through a Chiller
Operating Principle:
- The high-temperature gas flows from top to bottom in the special spiral pipe, andgenerates heat exchange with the cooling liquid during the flow process. Therebythe gas quickly cool down, while the vaporized water condenses into water dropletsAs the spiral pipe and the liquid storage tank are separated, eventually the waterwill drip into the liquid storage tank due to gravity, and the gas will float upwardafter coming out of the pipe.
Description:
- 1.Made of 304 stainless steel.
- 2.The interface size can be customized if required.
- 3.Chiller with different powers can be selected according to the working conditions.

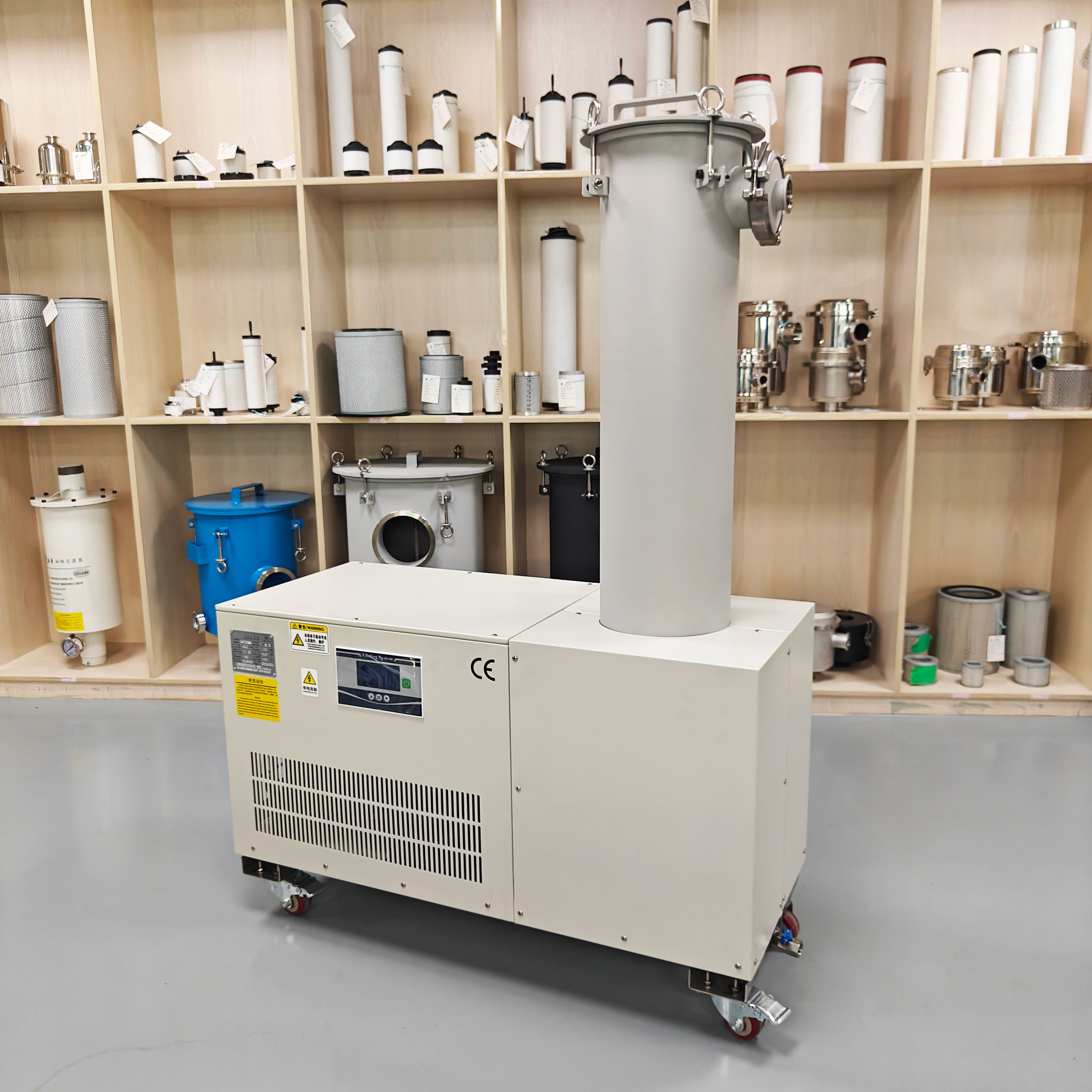

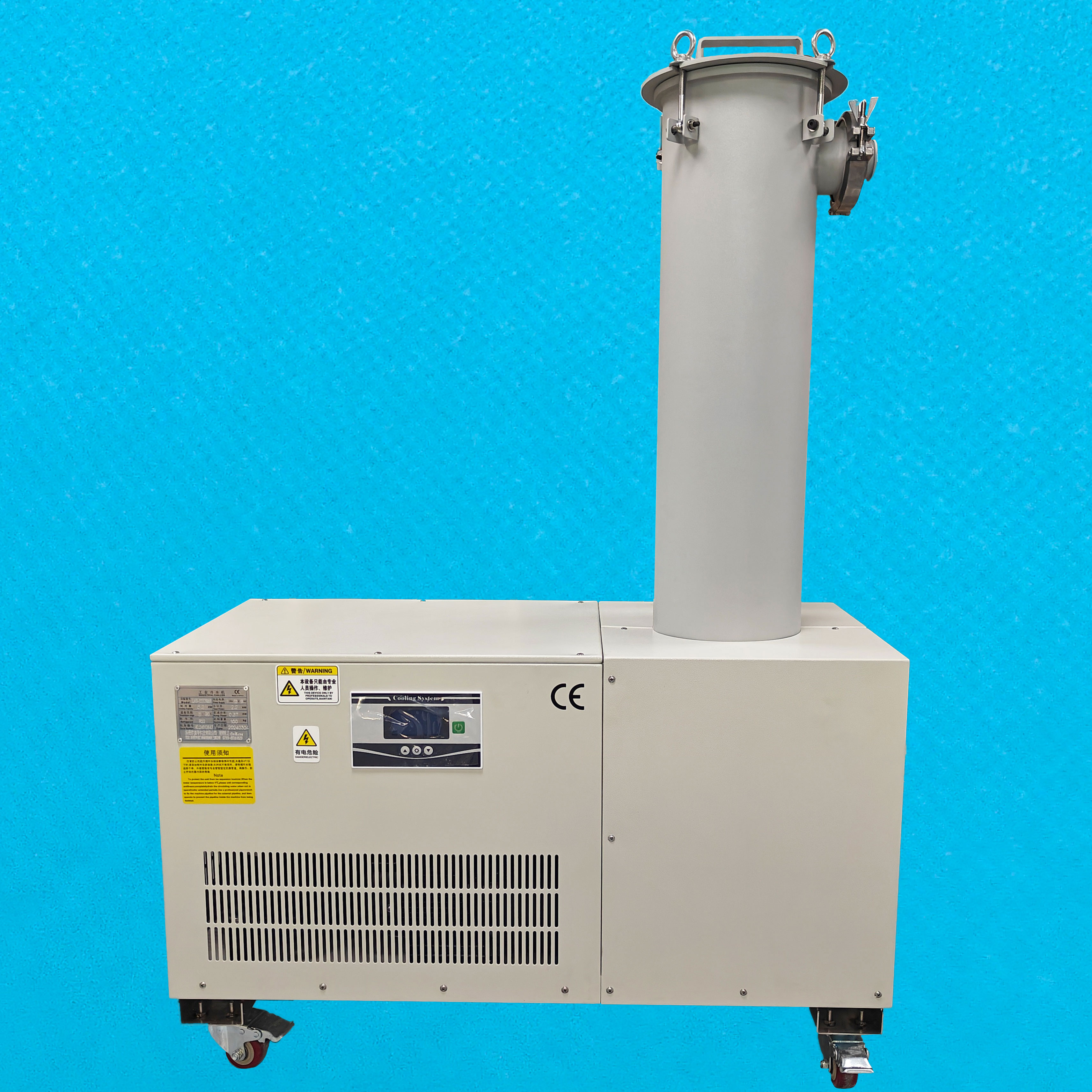

Gas-Liquid Separator Detail Picture
27 tests contribute to a 99.97% pass rate!
Not the best, only better!
Leak Detection of Filter Assembly
Exhaust Emission Test of Oil Mist Separator
Incoming Inspection of Sealing Ring
Heat Resistance Test of Filter Material
Oil Content Test of Exhaust Filter
Filter Paper Area Inspection
Ventilation Inspection of Oil Mist Separator
Leak Detection of Inlet Filter
Leak Detection of Inlet Filter
