Products

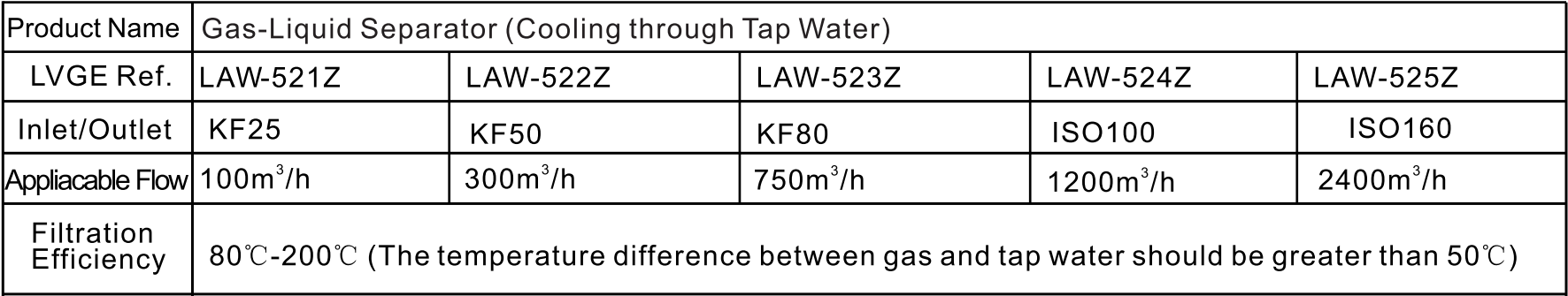

Gas-Liquid Separator Cooling through Tap Water
Operating Principle:
- Using tap water as the cooling liquid. The high-temperature gas flows from top to bottom in the specialspiral pipe, and generates heat exchange with the tap water during the flow process. Thereby the gasauicklv cool down, while the vaporized water condenses into water droplets.As the spiral pipe and theliguid storage tank are separated, eventually the water will drip into the liquid storage tank due to gravity and the gas wil float upward after coming out of the pipe.
Description:
- 1.Made of 304 stainless steel.
- 2.The interface size can be customized if required.
- 3.The bracket can be customized if required.
- 4.Cooling through tap water.
- 5.Without filter element.

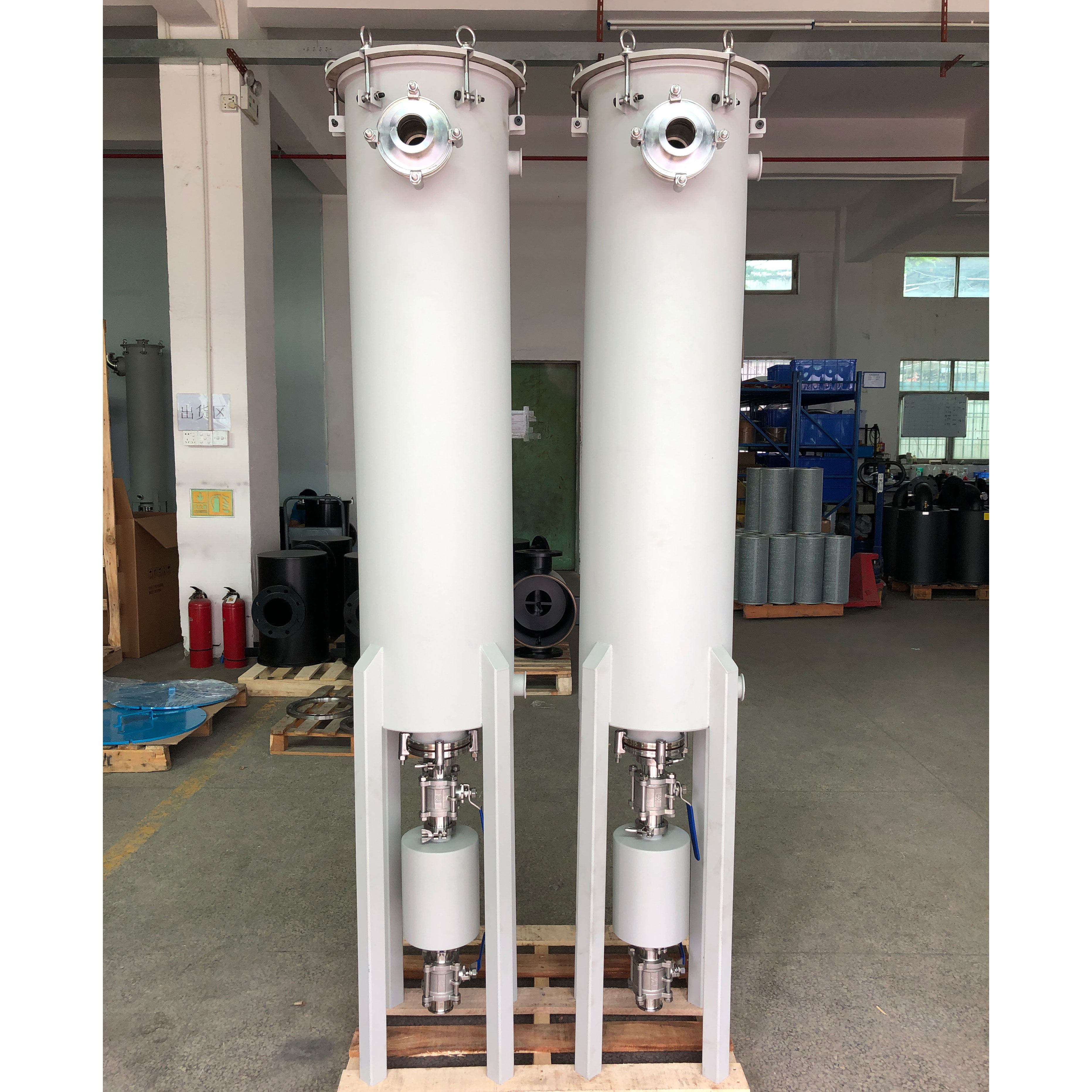

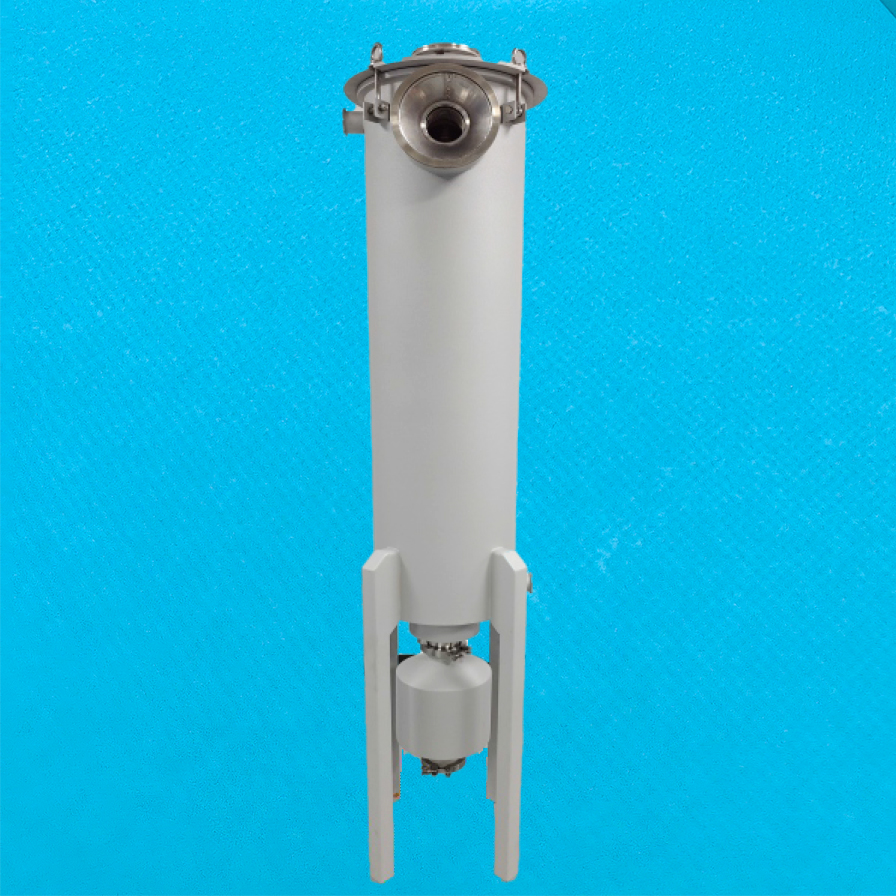

Gas-Liquid Separator Detail Picture
27 tests contribute to a 99.97% pass rate!
Not the best, only better!
Leak Detection of Filter Assembly
Exhaust Emission Test of Oil Mist Separator
Incoming Inspection of Sealing Ring
Heat Resistance Test of Filter Material
Oil Content Test of Exhaust Filter
Filter Paper Area Inspection
Ventilation Inspection of Oil Mist Separator
Leak Detection of Inlet Filter
Leak Detection of Inlet Filter
