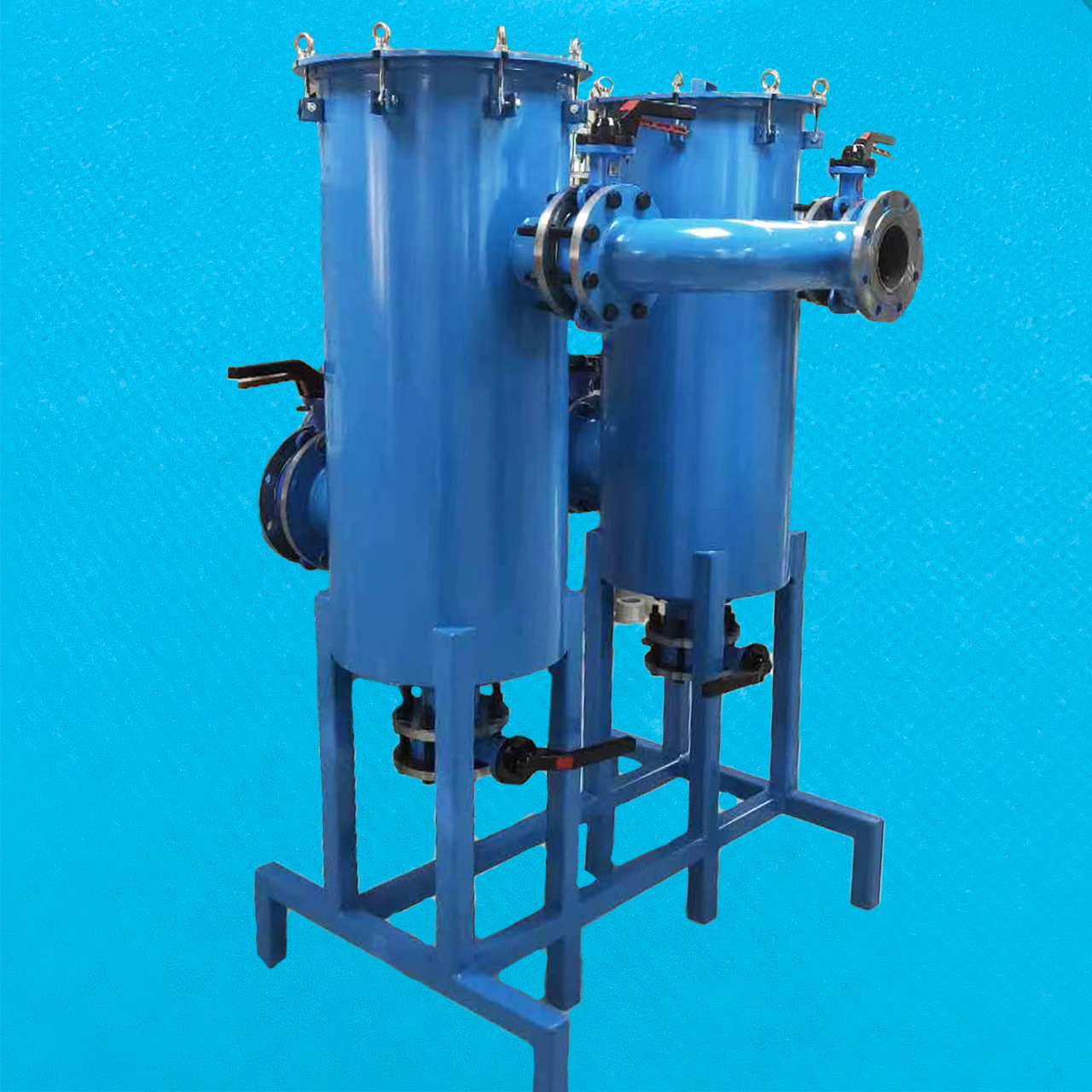

Gas-Liquid Separatorfor Low Vacuum

Gas-Liquid Separatorfor Low Vacuum,
Gas-Liquid Separatorfor Low Vacuum,

Function:

• Installed at the inlet port of the vacuum pump, it can prevent the pump chamber from sucking powder.So it can reduce mechanical wear of the pump and contamination of the vacuum pump oil.
  By switching filters, the filter element can be cleaned or replaced without affecting the continuousoperation of the application device.

Description:

• 1.The housing is made of 304 stainless steel with seamless welding technology.(Carbon steel is available)
• lt has excellent corrosion resistance and sealing performance. lts leakage rate is 1*10^-3Pa/L/s.
• 2.With great appearance applying electrostatic spraying technology.
• 3.The interface size can be customized if required.Material.
• 4.The standard product is equipped with manual valves, and automatic valves are available.

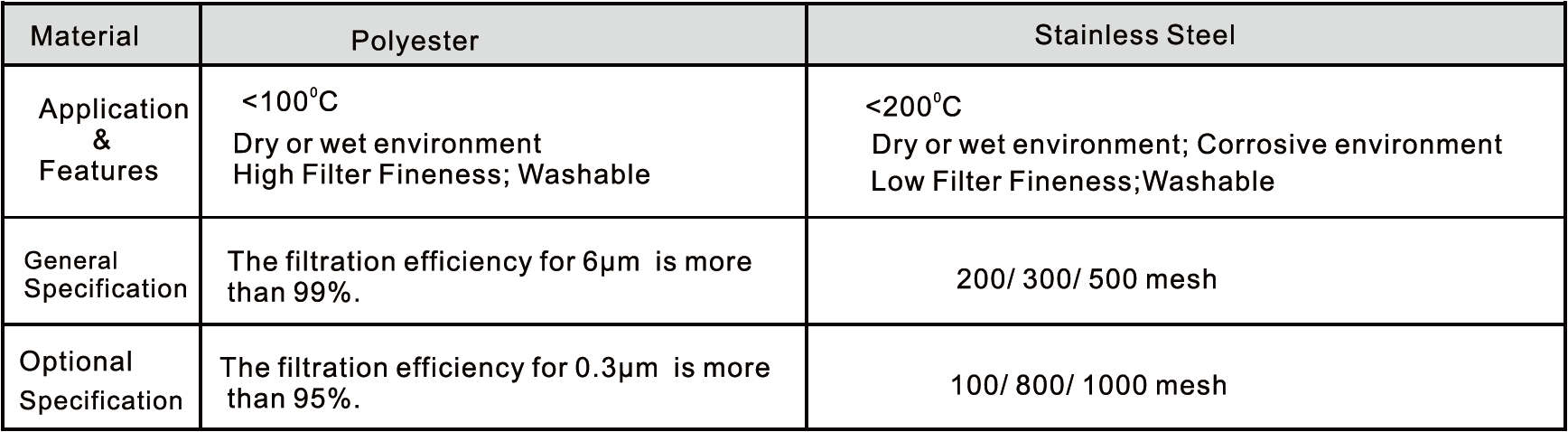

• 5. Filter Element:

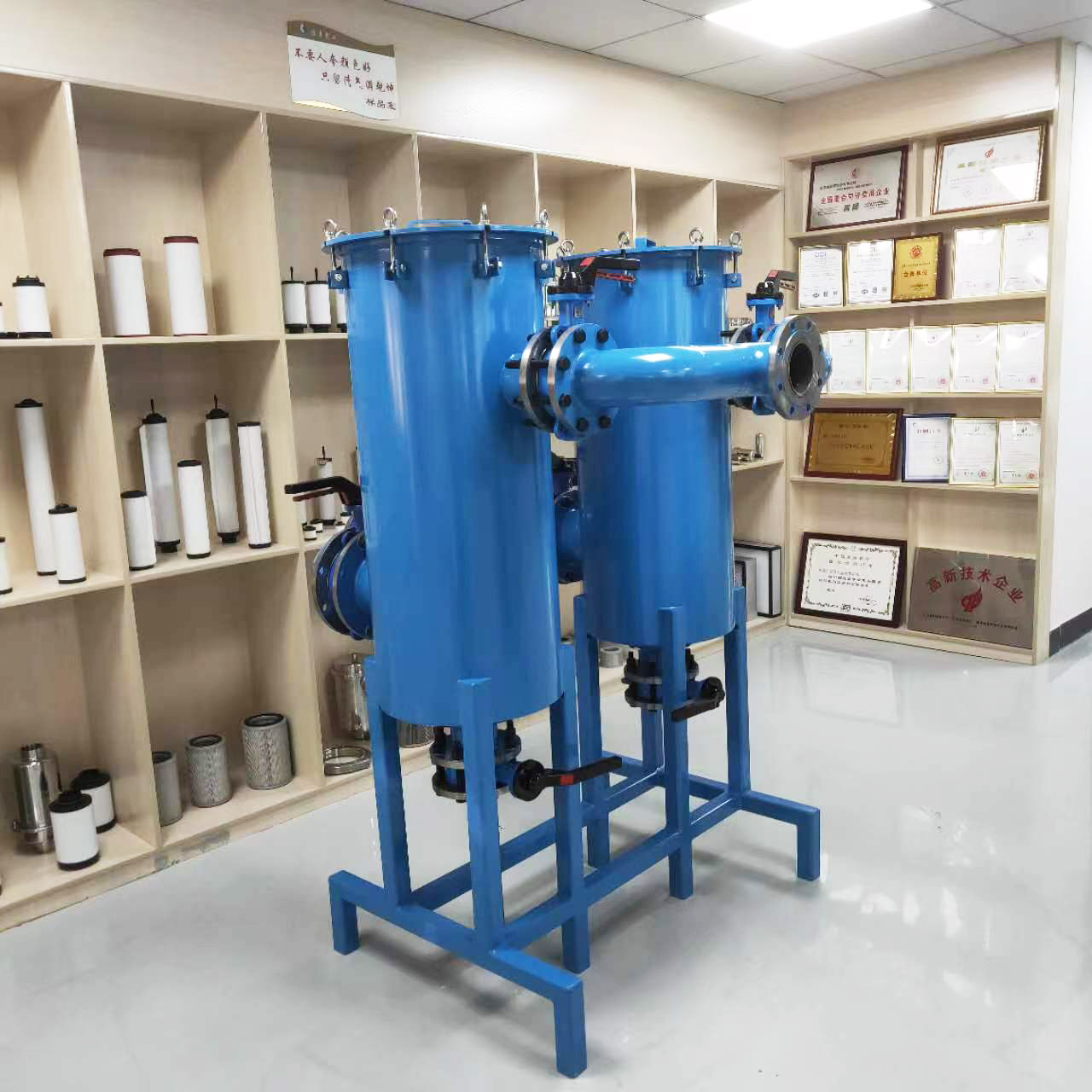

Product Detail Picture

27 tests contribute to a 99.97% pass rate!
Not the best, only better!

Heat Resistance Test of Filter Material

Oil Content Test of Exhaust Filter

Filter Paper Area Inspection

Ventilation Inspection of Oil Mist Separator

Leak Detection of Inlet Filter

Leak Detection of Inlet FilterGas-Liquid Separator (Suitable for Low Temperature and Low Vacuum Environments)

In modern industrial production, vacuum pumps and fans are widely used in various fields. However, during continuous operation of vacuum equipment, water vapor and harmful liquids are often drawn into the equipment’s cavity, leading to equipment failure, contamination of lubricating oil, and even shortened equipment lifespan. To address this issue, our Gas-Liquid Separator (designed for low temperature and low vacuum environments) effectively separates harmful liquids from the gas flow, protecting your vacuum pumps and fans from the detrimental effects of water vapor, oil mist, and other liquids, ensuring long-term stable operation of the equipment.

Product Features and Advantages
Highly Efficient Separation of Harmful Liquids
Our gas-liquid separator is specially designed for low temperature and low vacuum environments, efficiently separating water vapor, oil mist, and other harmful liquids from the gas flow. Through precise filtration technology, it ensures complete removal of harmful liquids, reducing the risk of liquid entering the equipment.

Easy Installation
The gas-liquid separator can be easily installed at the inlet of vacuum pumps or fans. It is simple to operate and highly adaptable. Whether for new or existing equipment, it can be quickly installed and immediately improve the operation of the equipment.

Effective Equipment Protection
When vacuum suction cups and other equipment are in operation, water and air are often drawn into the vacuum pump due to the need for creating a vacuum in the container. If the water mist is not separated before entering the pump cavity, it can contaminate and emulsify the vacuum pump oil, affecting the normal operation of the equipment. The gas-liquid separator effectively separates water mist and other liquids before they enter the pump cavity, reducing equipment failure rates and extending the lifespan of the equipment.

Point Discharge or Recycle for Reuse
The separated liquids can be either discharged at a designated point or recycled for reuse through the gas-liquid separator, minimizing resource waste and bringing additional economic benefits to the enterprise. It also contributes to environmental protection, aligning with modern industrial demands for sustainable development.

Durable and Reliable
Our gas-liquid separators are made from high-quality materials, offering excellent corrosion resistance and high-temperature tolerance. They operate stably even in extreme conditions, ensuring that your equipment always performs at its best.

Application Scenarios
Gas-liquid separators are widely used in vacuum equipment that operates in low vacuum or low-temperature environments, such as:

Vacuum Pumps and Fans: Separate water vapor and oil mist from the gas flow to protect the equipment from liquid damage.
Vacuum Suction Cups: Ensure that the vacuum creation process is not contaminated by liquids, improving work efficiency.
Other Industrial Vacuum Systems: Prevent liquid damage to vacuum systems in various industrial applications, enhancing production stability and safety.
Technical Parameters
Applicable Range: Low temperature, low vacuum environments
Separation Efficiency: ≥99% (based on gas flow rate and liquid properties)
Operating Pressure: Suitable for vacuum environments ranging from -0.1MPa to 0.5MPa
Discharge Method: Point discharge or recycle
Applicable Medium: Air, water, oil mist, etc.

By choosing our Gas-Liquid Separator, you not only improve the operating efficiency of vacuum pumps and fans but also reduce equipment failures, extend lifespan, and lower maintenance costs. Whether for product quality assurance or operational efficiency enhancement, the gas-liquid separator provides a perfect solution. Add a strong layer of protection to your vacuum system today and ensure smoother, more reliable equipment operation!
